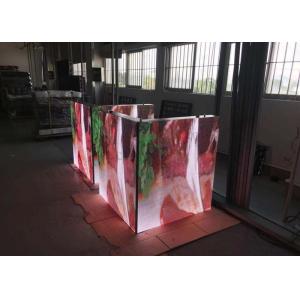

    Right Angle Outdoor Fixed LED Display P8 1R1G1B 15625 Pixels / Sqm High Brightness

    Ask Lasest Price
    Brand Name : Shenzhen LED World
    Model Number : LW-FO8
    Certification : CE, ROHS , CCC , FCC
    Price : Negotiation
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram,
    Supply Ability : 5,000 square meters per month
    Delivery Time : 7- 18 working days
    • Product Details
    • Company Profile

    Right Angle Outdoor Fixed LED Display P8 1R1G1B 15625 Pixels / Sqm High Brightness

    P8 Right Angle Outdoor Fixed LED Display 1R1G1B


    P8 Angle LED Display Feature :

    • Display broadcasting full-motion picture;
    • High brightness, screen adjusts automatically;
    • Low Power Consumption, Energy Saving;
    • The brightness can be adjustable to meet the need of changing environment;
    • Kinglight LED lamp and Macroblock 5124 made;
    • That is to improve the aesthetic sense, but also make the screen view;


    P8 Angle LED Display Parameter :

    P8 outdoor fixed led display
    Module Parameter
    Pixel pitch8mm
    Pixel Density15625 pixels/sqm.
    LED typeSMD3535
    Pixel combination1R1G1B
    Module size256x128mm
    Module resolution32x16 pixels
    Driving mode1/4 scan
    Panel Parameter
    Number of modules4W*4H
    Panel size1024x1024mm
    Panel resolution128x128
    Maintain wayRear
    IP RatingIP65
    Flatness≤0.1mm
    Cabinet materialDie-cast aluminium or Iron
    General Parameter
    Viewing distance≥9M
    Brightness≥6000CD/sqm.
    Viewing angle120°/120°
    Weight40kg/sqm.
    Max Power consumptionMax. 800W/sqm.
    Aver Power consumptionAver. 320W/sqm.
    Frame frequency≥60HZ
    Refresh frequency≥1920HZ
    Working Temperature-30ºC~50ºC
    Working VoltageAC90~260V±20%,50-60HZ
    Grey scale/color16384x16384x16384
    Brightness adjustment0-255
    MTBF5000 hours
    Life100000 hours
    Malfunction dot rate<0.0001
    Control distanceEthernet cable≤100m, Single mode fiber optic ≤500m, Multimode fiber optic ≤15km
    Control system
    Control systemNovastar / Linsn / Colorlight ( Optional )
    Input signalDVI / HDMI / SDI / VGA / S-video / Composite
    Video processorVDWALL / RGBlingk / Novastar ( Optional )
    Audio system
    Audio systemBOSE / JBL / PAL / Customized ( Optional )
    InstallationFixed installation / Rental installation ( Optional )
    Hanging barOptional
    CertificationCE / RoHS / ETL / CCC / FCC / BS476
    Packing TypePlywood case / Flight case ( Optional )
    Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.



    P8 Angle LED Display Details:



    Our Advantage:

    • High degree of protection,high durability;
    • Service advantage: Better service at same situation, better cooperation at same service;
    • ManyYears factory, We are led screen manufacturer for 7 years, we have rich experience in outdoor and indoor led display, quality is guaranteed;
    • Cabinets adopt rapid assembling sets Which can be beautiful but also a real rapid disassembling;
    • High contrast rate up to 9000:1 by using black LED;
