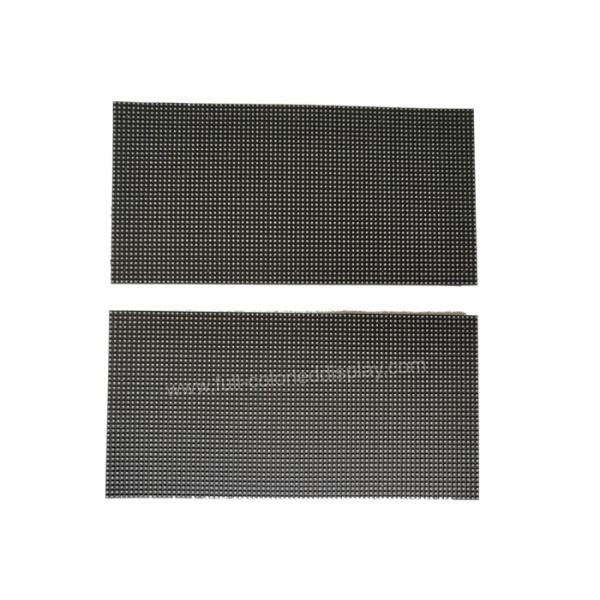

    P3 240x120mm Soft Full Color LED Display Module Synchronization Control Method

    Ask Lasest Price
    Brand Name : Shenzhen LED World
    Model Number : LW-MF3
    Certification : CE, ROHS , CCC , FCC
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000 pcs/month
    Delivery Time : 7- 18 working days
    • Product Details
    • Company Profile

    P3 240x120mm Soft Full Color LED Display Module Synchronization Control Method

    Indoor full color P3 240 x 120 mm soft led modules for flexible led display screen


    P3 soft led module Features:


    Adopt flexible PCB and bottom shell mask make the module particularly soft, can achieve 120 degrees of folding

    The flexible module is equipped with high strength magnetic core connection device

    Adopt FPC circuit board made of flexible insulation substrate

    Durable soft rubber module, anti-static electric

    Dot to dot maintain, easy and quick maintenance, save maintenance cost


    P3 soft led module Parameters:


    P3 SMD1515 Indoor full Color soft LED Module
    Pixel pitch3.0 mm
    Pixel Configuration1R1G1B
    LED componentSMD1515
    Size of module240mm x 120mm x 1.6mm (thickness)
    Resolution of module80x40 pixels
    Brightness>1000cd/sq.m
    Density111111 dots/sq.m
    Best viewing angle160° /120°
    Best viewing distance3-30M
    Maximum power consumption25W/module
    Driving method1/20 scan
    Control methodSynchronization
    Gray scale65536
    Color temperature3200-9300k
    Uniformity97%
    Working voltageAC220V/110V±10%
    Working temperature-20ºC~+50ºC±10%
    Working humidity10% ~ 90%
    MTBF10,000 hours
    Frame frequence50/60Hz
    Refresh frequence>1920Hz
    IP gradeIP31
    Life Span50,000 hours
    Data transafer methodRJ45
    Pratical standardCCC TUV-CE ETL etc.
    Effectivce CommunicationUnshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
    Distance(without relay)Single-mode optic fiber: 10KM
    Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
    Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
    Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.


    Product Details:



    Why Choose Us:


    • Aluminum backcover is good for heat dissipation no need a separate fan inside it is very quiet for some events that requests very quiet environment;
    • Strong R D team ensures products with nice features;
    • We have fully automatic production lines and have more than 120 employees;
    • HIgh refresh rate guarantee no scaning lines when taken photo or video;
    • Innovative LED Screen Manufacturer for indoor outdoor rental events and fixed projects;
