    High Resolution Led Screen Modules , Smd Led Module Anti Humidity

    Ask Lasest Price
    Brand Name : Shenzhen LED World
    Model Number : LE-MO 10
    Certification : CE,RoHS,FCC
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 50,000PCS/Month
    Delivery Time : 5~15 days after receiving the deposit
    • Product Details
    • Company Profile

    High Resolution Led Screen Modules , Smd Led Module Anti Humidity

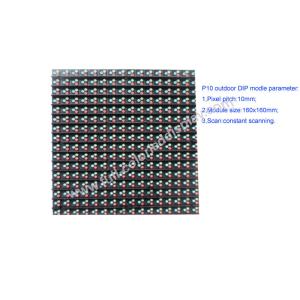

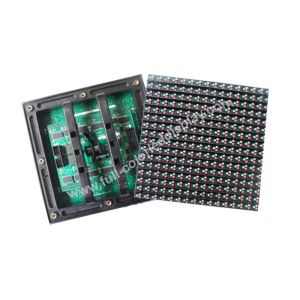

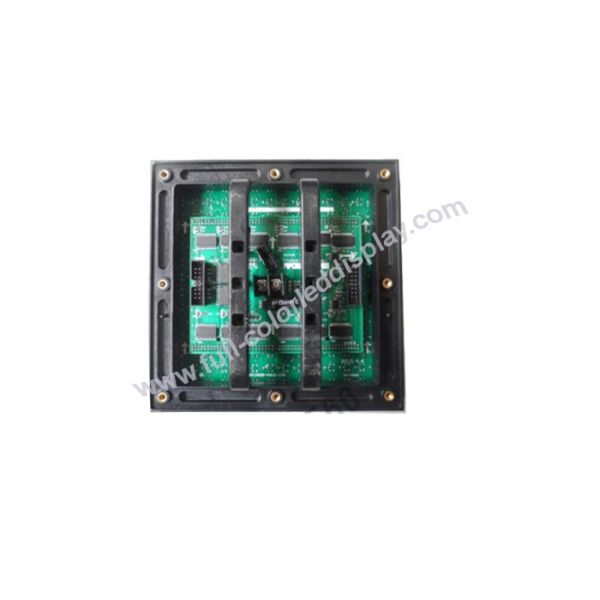

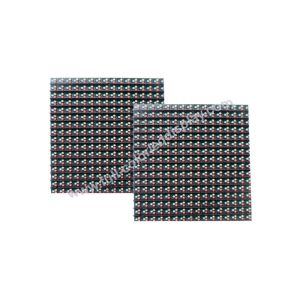

    P10 dip Full Color LED Display Module 160 x 160 mm high brightness up 8000cd / m2


    Features:

    • Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof;
    • Fanless and IP65 waterproof design of cabinet greatly protect cabinet in any outdoor environment;
    • Use DIP technology to make the LED display have good waterproof and anti-humidity when used;
    • Super Stability
    • High quality components and elaborate processing craft, effectively reducing the blind spot rate even working under the severe environment;
    • Exquisite and tastful appearance due to structural wire layout;
    • Good price
    • Our price is 10% lower than the market because of the introduction of full
    • Automatic production line with the characteristics of reducing the cost of
    • Labor and management;
    • Ideal parameter setting,effectively slowing down the speed of brightness and color reduction;
    • Easy for installation;
    • MTBF: More than 10, 000hours;

    Parameter:

    Paramete of P10 LED module
    ItemParameter
    Model NumberLW-MO10-160X160-DIP-constant scanning
    Pixel pitch10mm
    Size of module160mmX160 mm
    Resolution of module16 X16
    Density of pixel10000dots/m2
    Pixel configuration1R1G1 B
    Red wavelength625± 2nm
    Green wavelength525± 2nm
    Blue wavelength470± 2nm
    Colors16777216
    Best viewing distance>10m
    Horizontal viewing angle110°
    power consumption200w/m2 (average)
    Brightness> 8000cd /m2
    Gray scale16bits per color
    Color temperature6500k
    Control methodSynchronization & Asynchronization
    Driving methodconstant scanning
    Frame frequency60Hz
    Refresh frequency> 1000Hz
    Working voltageAC220V/110V± 10%
    IP gradeIP65
    Working temperature-20° C~80° C
    MTBF> 10000 hours
    Life span> 100, 000 hours
    Defects rate.≤ 0.00001(Led display line standard< 0.0001)
    Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

    Application:

    Suitable for Offices,school, airports, Stage Performance,ferry,Open Air exhibitions,cinema, TV-Show and so on .

    Our company:

    • Customer satisfaction is our prime objective and our high quality LED video display screen used in more than 140 countries and win a high reputation.
    • Shenzhen LED World co.,ltd will be committing to provide more cost-effective, more energy-efficient, and greener LED optoelectronic products, contributing to building a green home.
    • It export from Year 2011, have Own Export License.
