| Brand Name : | Shenzhen LED World |
| Model Number : | LW-CO 10 |
| Certification : | CE,RoHS,FCC |
| Price : | negotiable |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 5000 sqm/month |
| Delivery Time : | 15~20 working days after deposit received |
Indoor LED Screen Curtain display P10 / P12.5 / P16 / P20 with performance design
Product description:
Parameter:
| Model No. | P10 | P12.5 | P16 | P20 |
| Pixel pitch | 10mm | 12.5mm | 16mm | 20mm |
| Led type | SMD3528 | SMD3528 | SMD3528 | SMD3528 |
| Resolution(dots/sq.m) | 10000 | 6400 | 3906 | 2500 |
| Brightness(Nits) | ≥1000 | ≥1000 | ≥1000 | ≥800 |
| Drive mode | 1/8 | 1/8 | 1/4 | 1/4 |
| Module size(mm) | 320×320 | 400×200 | 256×256 | 320×320 |
| Panel size (mm) | 640×640 | 800×800 | 1024×768 | 960×960 |
| Panel resolution(dots) | 64×64 | 64X64 | 64×48 | 48×48 |
| Cabinet weight(KGS) | 10 | 10 | 12 | 10 |
| Power consumption | 500/150 | 350/150 | 400/150 | 250/100 |
| Max./Avg. (W/m²) | ||||
| View angle(H/V) | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| Refresh rate(Hz) | ≥1200 | ≥1200 | ≥1200 | ≥1200 |
| Grey scale | 16Bits | 16Bits | 16Bits | 16Bits |
| Best view distance | 8-50M | 10-50M | 15-50M | 15-50M |
| Protection level(Front/Back) | IP43/IP31 | IP43/IP31 | IP43/IP31 | IP43/IP31 |
| Input Power (V) | 110~240 | 110~240 | 110~240 | 110~240 |
| Working Temperature | -20ºC~+50ºC | -20ºC~+50ºC | -20ºC~+50ºC | -20ºC~+50ºC |
| Working humidity | 10% ~90% | 10% ~90% | 10% ~90% | 10% ~90% |
| Control | Caste ≤100M, Fiber optical≤10000 | |||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||||

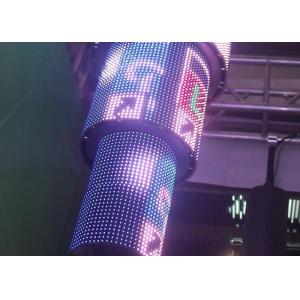

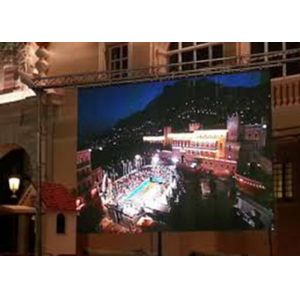

Project case:


|
