    P8.928 Led Curtain Screen ,Led Curtain Wall 100000 Hours Life Span

    Ask Lasest Price
    Brand Name : Shenzhen LED World
    Model Number : LW-CO 8.928
    Certification : CE,RoHS,FCC
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 5000 sqm/month
    Delivery Time : 15~20 working days after deposit received
    • Product Details
    • Company Profile

    P8.928 Led Curtain Screen ,Led Curtain Wall 100000 Hours Life Span

    P8.928 outdoor LED Grille screen , Mesh Configuration display for stage Background

    Product description:

    • SMD led encapsulation confirm wide view angle;
    • With rental aluminum cabinet, light weight, easy and quick to assemble and maintenance;
    • the average power only 350 w/m squared, super energy saving;
    • Save: Low cost of steel structure, low cost of labour;
    • Can be fixed install or hung for rental, widely used for stage,concert,show,exhibiton and commercial advertising;
    • Aluminum cabinet with light weight and lasting,long life span;
    • Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, stage etc;
    • Single module design, can dismantle by single module, fast and easy to maintain;



    Parameter:

    P8.928 full Color LED Screen/Curtain Specification
    Pixel pitch8.928mm
    Pixel Configuration1R1G1B
    LED componentSMD3535
    Size of module250mm x 250mm
    Resolution of module28x28
    Size of cabinet500mm x 500mm/500mm x1000mm
    Resolution of cabinet56 x 56/56x112
    Material of CabinetAluminum
    Weight of Cabinet7.5kgs / 13KGS
    Brightness>4500cd/
    Density12546dots/
    Best viewing angle140 /140
    Pixel Configuration1R1G1B
    Best viewing distance8-100M
    Maximum power consumption700W/
    Average power consumption350W/
    Driving method1/7 scan
    Control methodSynchronization
    Gray scale65536
    Colors256*256*256
    Color temperature3200-9300k
    Uniformity97%
    Working voltageAC220V/110V±10%
    Working temperature-20ºC~+50ºC±10%
    Working humidity10% ~ 90%
    MTBF10,000 hours
    Frame frequence50/60Hz
    Refresh frequence>1920Hz
    IP gradeIP65
    Life Span100,000 hours
    Data transafer methodRJ45
    Pratical standardCCC TUV-CE ETL etc.
    Effectivce CommunicationUnshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
    Distance(without relay)Single-mode optic fiber: 10KM
    Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
    Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
    Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.


    Why choose us :

    • CE,RoHS,FCC certification;
    • Our product are low consumption;
    • Price Advantage: We have the best competitive price at the market, also have the same even better quality;
    • "Good quality and price the price is 10% lower than the market because of the introduction of full automatic production line with the characteristics of reducing the labor cost and management;"
    • Good service whenever;
    • Good quality by using Nationstar led lamp, MBI IC;

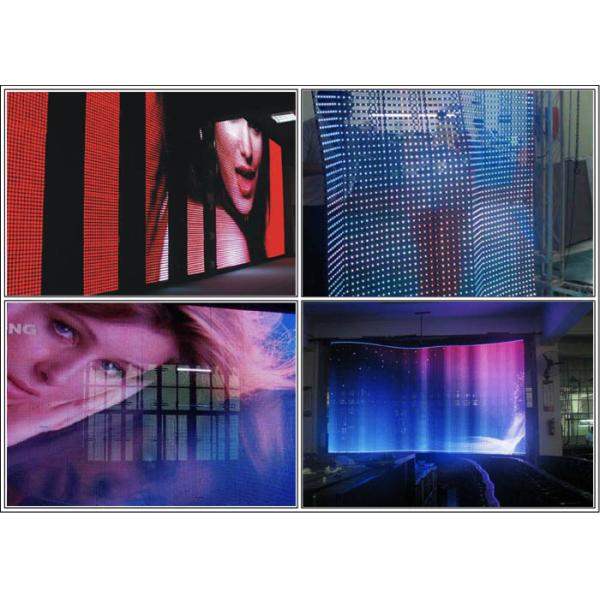

    Project case:
