    Fast Maintenance Outdoor LED Video Wall Multi Functional Cabinet

    Ask Lasest Price
    Brand Name : Shenzhen LED World
    Model Number : LW-FO 4.81
    Certification : CE,RoHS,FCC
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 3,000 square meters per month
    Delivery Time : 12-20 working days after received your payment
    • Product Details
    • Company Profile

    Fast Maintenance Outdoor LED Video Wall Multi Functional Cabinet

    P3.91 / P4.81 / P5.68 / P6.25 Outdoor / indoor rental led electronic digital billboard


    Features:

    • Module size of 250x250mm, can be assembled with 500x500mm and 500x1000mm;
    • The resolution is 43,222 pixels per square meter so definition is high enough for showing video, images and it's clear enough when viewed in short distance;
    • Fast Maintenance, with front maintenance design, maintenance efficiency is 10 times higher than traditional method, significantly saving time needed for maintenance;
    • Cabinet size:500mmW*500mmH, thickness around 60mm, only7.0Kg;It can be P3.91, P4.81, P5.68 and P6.25;
    • The shapes can be outer curved ,inner curved ,flat and waved by using our specially designed angle regulator;
    • The screen could be hung up for different kinds of event.And it also could be put on the floor as dance floor;
    • It's possible to be waterproof by pasting glue on it , can be used both outdoors and indoors.;
    • Multifunctional cabinet, just change the module to upgrade the product with low cost;
    • The LED screen size can be exactly : 4*3m ,6*4m,9*5m etc .easy to get 4:3 ,16:9 ratio ;
    • 500x1000mm big panel,speedily and easily mounting,perfect 16:9 colorful image;

    Parameter:

    ParameterUnitValue
    Pitchmm4.81
    Brightnessnitsover 5000
    Color temperaturedeg. K6,500
    Viewing angle - Horizontal (50% brightness)deg.140(-70 ~ +70)
    Viewing angle - Vertical (50% brightness)deg.140(-70 ~ +70)
    Panel weightkg13
    Panel widthmm500
    Panel heightmm1000
    Panel depthmm78
    Panel areasq. m.0.5
    Panel material Epoxy paint coated Aluminum
    Panel Mode Die-Cast rental
    Operating temperature rangedeg. C-20 to +60
    Humidity operatingRH10% ~ 60%
    Pixel type and configurationR/G/B3-in-1 SMD
    Resolution per panel 104x208
    Dot per panel 21,632
    Dot per sq. meter 43,222
    LED per sq. meter 43,222
    Recommended minimum viewing distancem3.6
    Recommended best viewing distancem5~15
    Colors 281 Trillion
    Grey scale (linear)Levels65,536
    Brightness controlLevels256
    Contrast ratio 2,000:1
    Processing depthbit16
    Video frame rateHertz60
    Display refresh rateHertz180~3,000
    Input voltage (nominal)VAC110 to 240
    Input power frequencyHertz50 to 60
    Input power (max)Watts / panel.400
    Input power (typical)Watts / panel.160
    Lifetime (50% brightness)Hours≥100,000
    Red wavelength (dominant)nm620~625
    Green wavelength (dominant)nm520~525
    Blue wavelength (dominant)nm470~475
    Multimedia data format DVI,MPG,AVI,WMV,RM etc.
    Data interconnection UTP Cat 5/Optical Fiber
    Mounting system Hanging/Fixed
    Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

    Our company:

    The products we can offer you, besides outdoor full color P10 led display for advertising, also include:
    1. P1.92P1.2P2.5P3P4P5P6...Indoor full color led display;
    2. P5P6P6.25P6.67P8P10/P12/P12.5/P16/P20/P25...Outdoor full color led screen;
    3. Indoor/outdoor/semi-outdoor single/dual color led panel etc.

    usage: broadcast, live show, TV studio, conference, party and wedding ceremony, they are also used as advertising screen in shopping mall center, building street, highway and so on.


    Why choose us:
    Respond within 24 hours;
    On time delivery + patient after-sales service;
    Provide promotion activity;
    Our products are the CE certified, ROHS compliant, FCC identified;

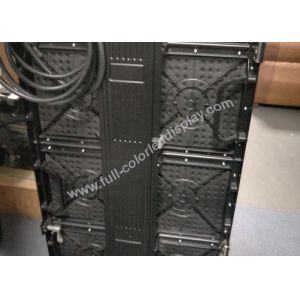

    Product detail:

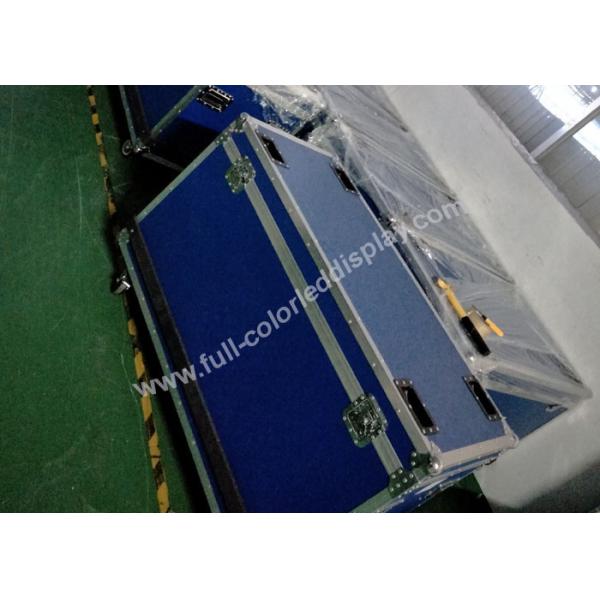

    Package:
