| Brand Name : | Shenzhen LED World |
| Model Number : | LW-FO 6 |
| Certification : | CE,RoHS,FCC,CCC |
| Price : | negotiable |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 5,000 square meters per month |
| Delivery Time : | 10~20 days after receiving the deposit |

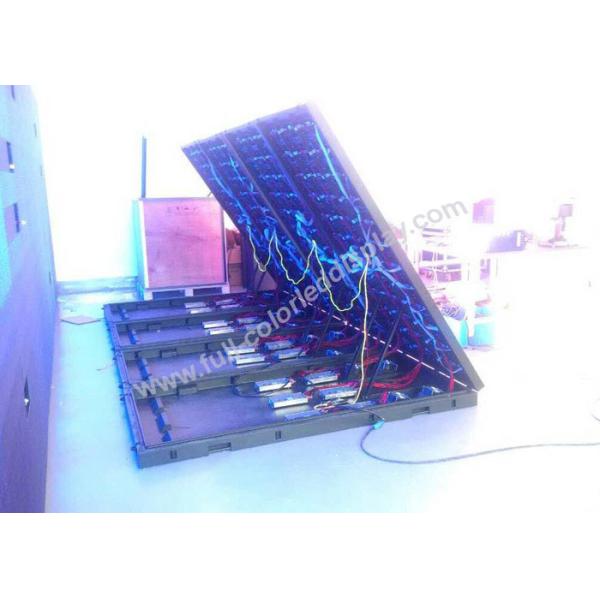

P6 , P8 , P10 Outdoor Fixed LED Display full color screen panel front service flip advertising
Features:
Parameter:
| Numbers | Technical indexes | Specification |
| 1 | Pixel pitch | 6mm |
| 2 | Module size | 192mm×96mm |
| 3 | Module resolution | 32×16 |
| 4 | Module density | 27,777dots/sqm |
| 5 | Pixel configuration | Full color |
| 6 | Red wavelength | 625±2nm |
| 7 | Green wavelength | 525±2nm |
| 8 | Blue wavelength | 470±2nm |
| 9 | Colors | 16777216 |
| 10 | Best viewing distance | more than 5m |
| 11 | Horizontal viewing angle | 140° |
| 12 | Vertical viewing angle | 70° |
| 13 | Maximum power consumption | ≤500W/2 |
| 14 | Brightness | ≥6000cd/m2 |
| 15 | Gray scale | 16bits of per color |
| 16 | Color temperature | 6500K |
| 17 | Control method | Synchronization or Asynchronization |
| 18 | Driving method | 1/8scanning |
| 19 | Frame frequency | 480Hz |
| 20 | Refresh frequency | ≥2000 Hz |
| 21 | Working voltage | AC220V/110V±10% |
| 22 | IP grade | IP65/IP54 |
| 23 | Working temperature | -20°C~80°C |
| 24 | MTBF | More than 10,000 hours |
| 25 | life span | more than 100,000 hours |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
Application:
Wide applied in campus,large entertainment plaza,cafe,TV
studio,banquet,station waiting area, Lobby,hospital and so on .
Our company:
Shenzhen LED World co.,ltd is professional development
manufacturing LED display system products, was founded in 2007,
with the registered capital 30 million, own workshop area 9000 m2,
branch office and agents cover all over China, with about 400
employees.
Its outdoor & indoor commercial advertising LED display, rental use
LED display, fixed installation LED display, sports stadium
perimeter LED display, mobile trailer LED display, water floating
LED display, transparent LED curtain display, digital LED
billboard, LED mesh display screen for skyscraper's decoration, arc
LED display, LED components & complete LED full color video systems
undergo stringent quality control at ISO 9001-certified
manufacturing plants.
Our company is professional in the development and manufacture of
LED display systems.
Shenzhen LED World co.,ltd is a professional LED media/video
display manufacturer.
Product detail:
Package:

|
