| Brand Name : | Shenzhen LED World |
| Model Number : | LW-FO 6 |
| Certification : | CE,RoHS,FCC,CCC |
| Price : | negotiable |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 5,000 square meters per month |
| Delivery Time : | 10~20 days after receiving the deposit |

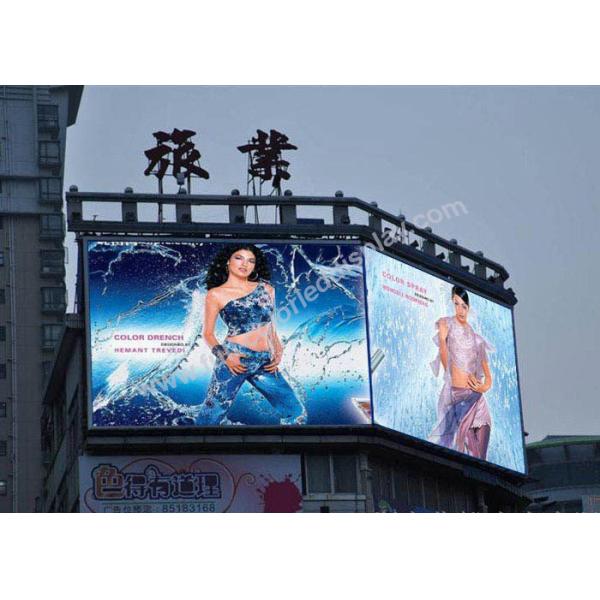

Application:
mansion video wall,TV Shows,lottery
center,Showrooms,government,high-speed rail station,
Sports events,grogshop,Campus,restaurant,live meeting,athletic
contest,pharmacy,Airport,stage renting,enterprises,waiting room of
station,public facilities,stage background,Auto Parts and
Maintenance shops,cinema,parking garage,Sports Stadium and so on .
Features:
Parameter:
| Items | Parameter |
| Model No | LW-FO 6 |
| Pixel | 1R1G1B |
| Configuration | SMD3535 |
| Brightness | >6000cd/㎡ |
| Pixel Pitch | 6mm |
| Pixel Density | 27,777 |
| Driver Mode | 1/4 scan or 1/8 |
| Module Size(mm) | 192x96or 192x192 |
| Pixels/Module | 32x16 or 32x32 |
| Cabinet Size(mm) | 960x960 mm or customized |
| Pixels/Cabinet | 160x160 |
| Cabinet Weight | 36KG |
| Viewing Distance | >6m |
| Power | Max: 1300 |
| Consumption(W/㎡) | Ave: 260 |
| Viewing Angle | H: 120°; V: 120° |
| Cabinet Material | Cold Rolled Steel |
| Refresh Rate | 300-3000HZ adjustable |
| LED Life | 100,000 hours |
| Supply Voltage | AC220V/50HZ; AC110V/60HZ |
| Operating Temperature | -20℃ ~ +50℃ |
| Operating Humidity | 10% - 90% |
| Gray Scale | Red, Green and Blue each 16K |
| Display Color | 4096 Billion |
| IP Rating | Front IP65,back IP54 |
| Display Capability | Text, Graph and Video |
| Compliant Standard | CE,RoHS,FCC |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
Our company:
Shenzhen LED World Optoelectronics Limited is the top professional
LED Display manufacturer, and has about 9 years experience in LED
screen industry, more than 9000sqm workshop, 400 workers, automatic
production line, strong R&D team. Our products have passed
RoHS, 3C, FCC and CE quality authentication.
Our company offers user-friendly products that optimize
productivity and business efficiency and maintain the highest
standards of design and quality.
Shenzhen LED World co.,ltd will be committing to provide more
cost-effective, more energy-efficient, and greener LED
optoelectronic products, contributing to building a green home.
Shenzhen LED World co.,ltd consistent source of strength for the
customer is the company's growth and expansion, the company has the
perfect pre-sale tracking service system and truly customer
-centric marketing module.

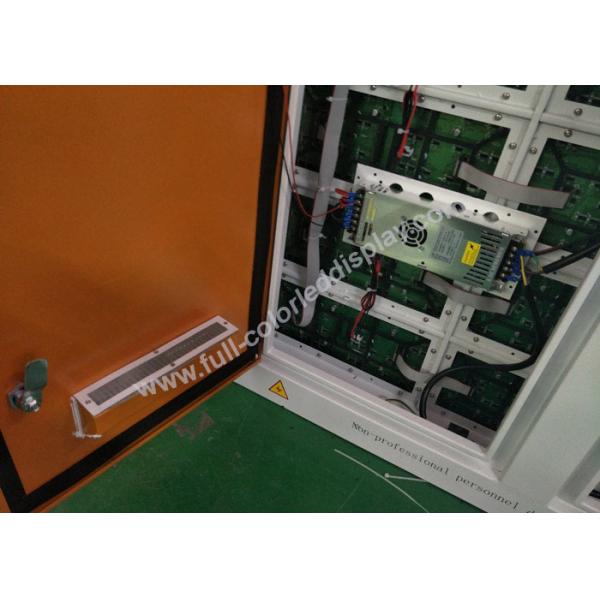

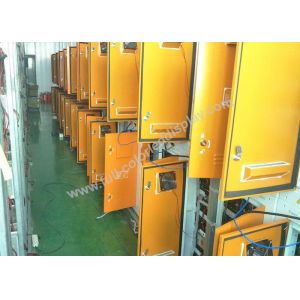

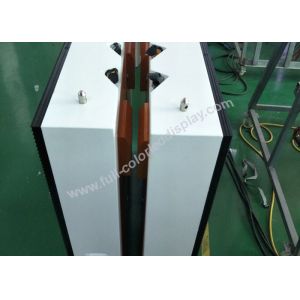

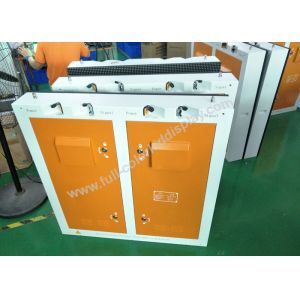

Product detail:


|
