| Brand Name : | Shenzhen LED World |
| Model Number : | LW-FO 8 |
| Certification : | CE,RoHS,FCC,CCC |
| Price : | negotiable |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 5,000 square meters per month |
| Delivery Time : | 10~20 days after receiving the deposit |

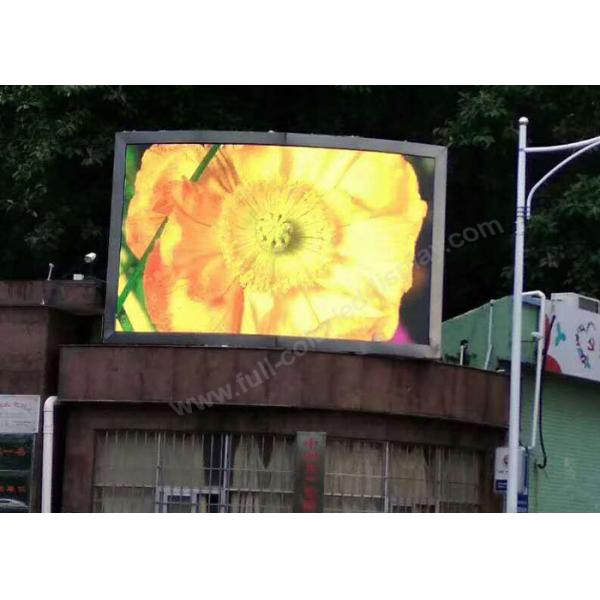

Outdoor series fixed led display_201905211506521.p...P8 multi color outdoor curved led display panel with Low Power Consumption
P8 multi color outdoor curved led display panel features:
P8 multi color outdoor curved led display panel parameter:
| Module | Pixel pitch | 8mm |
| Pixels | SMD 3in1(3535) | |
| Module size | 256mm×128mm | |
| Module resolution | 32dot×16dot | |
| Pixel density | 15625pixels/sq.m | |
| Cabinet | Cabinet resolution | 128×128dots |
| Cabinet dimensions | 1024mm×1024mm×130mm | |
| Cabinet material | Iron | |
| Cabinet weight | 40kg | |
| Electricity parameter | Brightness | 5000nits |
| Driving method | Constant current | |
| 1/4scan | ||
| Refresh frequency | ≥1920Hz | |
| Gray level | 1024~65536 | |
| Grayscale/color | >16.7M | |
| Frame frequency | >60Hz | |
| Viewing angle | 120° | |
| Power(maximum) | 630W | |
| Ingress protection | IP65 | |
| Temperature range | -15~60°C | |
| Humidity range | 10%~90%RH | |
| Control system | Synchronous control system Asynchronous control system | |
| Input signal | AV S-VIDEO VGA DVI HDMI YPBPR SDI DP | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
