    IP65 Waterproof Led Display P8 , Led Panel Display With Die Casting / Iron Cabinet

    Ask Lasest Price
    Brand Name : Shenzhen LED World
    Model Number : LW-FO 8
    Certification : CE,RoHS,FCC,CCC
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 5,000 square meters per month
    Delivery Time : 10~20 days after receiving the deposit
    • Product Details
    • Company Profile

    IP65 Waterproof Led Display P8 , Led Panel Display With Die Casting / Iron Cabinet

    Outdoor series fixed led display_201905211506521.p...P8 IP65 waterproof rgb Outdoor Fixed LED Display with diecasting or iron cabinet


    P8 rgb led display features:

    1. We can use 768 X 768 mm die-casting cabinet for fixed installation,the cabinet also suitable for P4 outdoor led display ;
    2. Sealed module, brush three anti-paint PCB, anti-UV mask, screen body can be suitable for outdoor harsh environment ;
    3. High gray level (16bit), to achieve the perfect video effects ;
    4. We are very competitive price, very good quality .

    Why choose us:

    1. You will have any questions, we will reply you within 24 hours ;
    2. Delivery is very short, conventional products usually 8 to 12 days can be delivered ;
    3. Our company passed the ISO9001 quality certification system ;
    4. Our sales staff will guide you how to buy products more cost-effective, better results ;

    P8 rgb led display Parameters:

    ItemsParameterP8mm
    ModulePixel1R1G1B
    ConfigurationSMD3535
    Pixel Pitch8mm
    Pixel Density15,625
    Module Size(mm)256x128
    Pixels/Module32x16
    CabinetCabinet Size(mm)1024x1024 or 768x768mm die-casting
    ( Optional )
    Pixels/Cabinet128x128
    Cabinet Weight41KG
    Electricity parameterBrightness>5000cd/㎡
    Viewing Distance>8m
    PowerMax: 1000
    Consumption(W/㎡)Ave: 260
    Driver Mode1/4 scan or 1/8
    Viewing AngleH: 120°; V: 120°
    Cabinet MaterialCold Rolled Steel or die-casting
    Refresh Rate300-3000HZ adjustable
    LED Life100,000 hours
    Supply VoltageAC220V/50HZ; AC110V/60HZ
    Operating Temperature-20℃ ~ +50℃
    Operating Humidity10% - 90%
    Gray ScaleRed, Green and Blue each 16K
    Display Color4096 Billion
    IP RatingFront IP65
    Display CapabilityText, Graph and Video
    Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

    FQA:

    Q1:What are Pixel Density?
    A1:Pixel Density is the quantity of pixels per square meter.
    Q2:How long do you provide warranty time ?

    A2:A: Different product offer different time frame warranty, but all product here we offer 2 year at least warranty
    Q3:Is it OK to print my logo on product?

    A3:Yes. Please inform us formally before our production and confirm the design firstly based on our sample ;
    Guarantee
    (1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
    (2) We will provide maintenance for a lifetime and charge for the raw materials only
    Q4:How to Check quality?

    A4:Our products all use good quality led materials,like PCB,plastics,led lamps,ICs,etc.
    a,You or your friend can come to our factory before production or after production;
    b,Before you place order ,in production and after production,we will take some pictures on related products.We promise everything is same as we discussed on products.

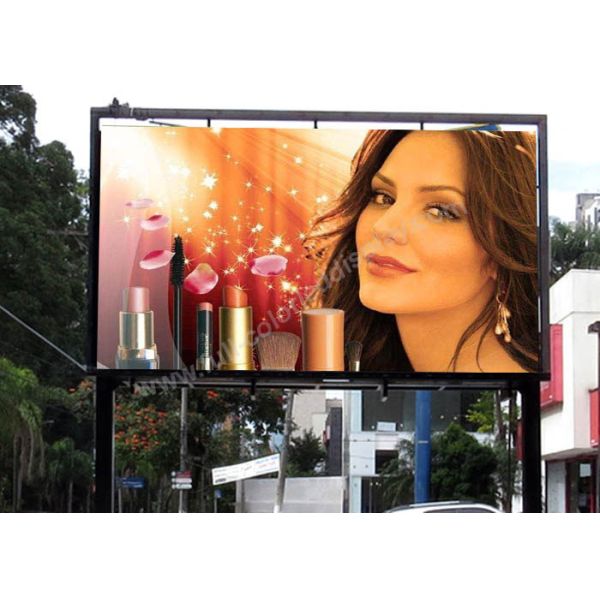

    Project case:
