Advertisement High definition Outdoor Fixed LED Display board with MBI5124 IC

    Buy cheap Advertisement High definition Outdoor Fixed LED Display board with MBI5124 IC from wholesalers

    Buy cheap Advertisement High definition Outdoor Fixed LED Display board with MBI5124 IC from wholesalers
    • Buy cheap Advertisement High definition Outdoor Fixed LED Display board with MBI5124 IC from wholesalers
    • Buy cheap Advertisement High definition Outdoor Fixed LED Display board with MBI5124 IC from wholesalers

    Advertisement High definition Outdoor Fixed LED Display board with MBI5124 IC

    Ask Lasest Price
    Brand Name : Shenzhen LED World
    Model Number : LW-FO 4
    Certification : CE,RoHS,FCC,CCC
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 5,000 square meters per month
    Delivery Time : 10~20 days after receiving the deposit
    • Product Details
    • Company Profile

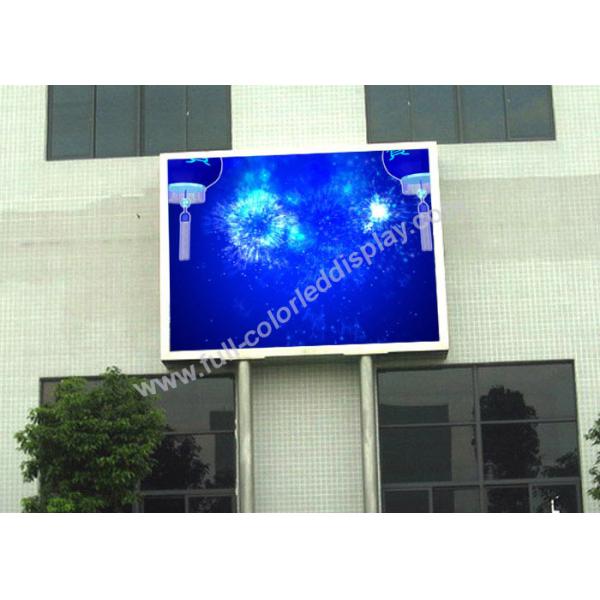

    Advertisement High definition Outdoor Fixed LED Display board with MBI5124 IC


    Outdoor series fixed led display_201905211506521.p...Advertisement High definition Outdoor Fixed LED Display board with MBI5124 IC


    Features:

    • Adopt the latest anti-collision technology, make a more stable cabinet during rental events, make a longer life span;
    • High definition for vivid video and pictures ;
    • PCB Board can be available with 4-layer design;
    • Control mode: synchronous or asynchronous;
    • Hign brightness and adjustable, short response time, dot to dot maintenance;
    • Passing the system of ISO 9001 with IP65;
    • 14 bit color,16384 gray scale,showing very clear and vivid video and images;

    Application:

    It can be widely used in high speed railway station,aiming at the exhibition,trade fair,factories,postal offices, press conference,bank,movie theater,Airport,stage renting,telecommunications,exhibition,massage room and so on .


    Parameter:

    Specifications of the module
    Technical parametersUNITParameters values
    Pixel pitchMM4
    Panel sizeMML256*H128*T13
    Physical density/M262500
    Pixel configurationR/G/B1,1,1
    Driving method Constant current 1/8scan
    LED EncapsulationSMD2727
    Display resolutionDOTS64X32=2048
    Module weightKG0.4
    Module port HUB75-B
    Module working voltageVDC5
    Module consumptionW30
    Specifications of LED cabinet
    Cabinet weightkg25
    Cabinet sizemm768*768*160
    Cabinet resolutiondots192*192
    Viewing angleDeg.140°
    Option distanceM4-50
    Driving device 2026/5020/16016
    Every square metre modulePCS30.52
    Maximum powerW/ M21000
    Frame FrequencyHZ/S≥80
    Refresh frequencyHZ/S≥1920
    Equilibrium brightnessCD/ M2≥5000
    Working environment temperature0C-10~60
    Working environment humidityRH10%~70%
    Display working voltageVACAC46~54HZ,220V±15%/110V±15%
    Colour temperature 8500K-11500K
    Gray scale/color ≥16.7M color
    Input signal RF S-Video RGB etc
    Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

    Why choose us:

    • 100% QC inspection before shipping;
    • Our products are the CE certified, ROHS compliant, FCC identified;
    • First-rate service;
    • Delivery date is quick and on time ;

    Our company:

    Shenzhen LED World co.,ltd is professional development manufacturing LED display system products, was founded in 2007, with the registered capital 30 million, own workshop area 9000 m2, branch office and agents cover all over China, with about 400 employees.
    The workshop covering an area of 9000 square meters, No. of production lines are above 10.
    Our technology strength is among the front row in this industries, with a professional team. Strictly quality control, good after sale service and quickly delivery.


    Project case:
