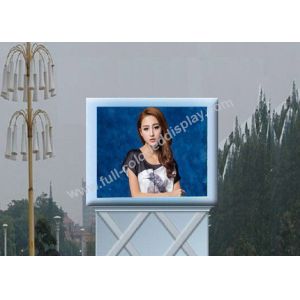

    High definition P5 P6 outdoor fixed led display screen for advertising

    Ask Lasest Price
    Brand Name : Shenzhen LED World
    Model Number : LW-FO 6 , 5
    Certification : CE,RoHS,FCC,CCC
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 5,000 square meters per month
    Delivery Time : 10~20 days after receiving the deposit
    • Product Details
    • Company Profile

    High definition P5 P6 outdoor fixed led display screen for advertising

    Outdoor series fixed led display_201905211506521.p...


    High definition P5 P6 outdoor fixed led display screen for advertising


    P5 , P6 outdoor LED screen features:

    • Super correcting technology for distortion;
    • Energy-saving design to lower the 25% power consumption, save your cost well for the project;
    • Convenient maintenance;
    • LED cabinet now design is iron material it would save much of your cost from make to Aluminum cabinet material;
    • The appearance is very elegant, it looks very high end. Quality is very stable
    • Black body LED lamp,can reach high contrast rate;

    Quick detail:

    • Material of cabinet can be change to iron or aluminium;
    • Size of cabinet can be changed
    • SMD can be widely viewing angle

    P5 and P6 outdoor fixed LED screen parameter:


    ModuleParameter NO.P5P6
    Size of Module(mm)320*160192*192
    Pixel Density(dots/m²)40000 dots/m²27777 dots/m²
    Pixel Pitch(mm)5mm6mm
    LED EncapulationSMD2727SMD3535
    Resolution of Module(dots)64(W)*32(H)32(W)*32(H)
    Thickness of Module (mm)17.05(No magnet)17.05(No magnet)
    Weight of Module (Kg)0.50.369
    Driving MethodConstant Current DrivingConstant Current Driving
    Equilibrium Brightness(CD//m²)≥7000 CD/m²≥7000 CD/m²
    BracketSize(mm)160*160192*192
    320*160384*192
    CabinetSize of Cabinet(mm)640*640576*576
    Power Supply Mode5V/40A*1PC5V/40A*1PC
    Best Viewing Distance(m)5-100m6-100m
    Best Viewing Angle160(W) 120(H)160(W) 120(H)
    Storage Temperature(ºC)-35ºC ~ +85ºC-35ºC ~ +85ºC
    Working Temperature(ºC)-40ºC ~ +50ºC-40ºC ~ +50ºC
    Relative Humidity10%-95%10%-95%
    Power SupplyWorking Voltage(V)AC220V±10%AC220V±10%
    Average Power Consumption(W/m²)≤500 W/m²≤500 W/m²
    Max Consumption(W/m²)≤1000 W/m²≤1000 W/m²
    Control SystemScan and control Method1/8 Synchronous Control1/8 Synchronous Control
    Driving ComponentsConstant current DrivingConstant current Driving
    Technical ParametersRefresh Frequency≥1920 Hz/Sec≥600 Hz/Sec
    (HZ)

    Frame Frequency≥60 HZ/Sec≥60 HZ/Sec
    (HZ)
    Level of Brightness/ColorRGB256RGB256
    Level of Gray6553665536
    Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

    Why choose us:

    • Good service whenever;
    • OEM service;
    • Manufacturer: over 9 years;
    • We are Professional manufactory of LED Display for more than 7 years in Shenzhen China.We have 9000 square meters of production base, 400 employees, enough for any orders;
    • CE,RoHS,FCC certification;
    • On time delivery + patient after-sales service;
    • Service advantage: Better service at same situation, better cooperation at same service;

    Our service:

    • 2 years for warranty, service time: 24 hours*7 days;
    • Under normal use and storage, Our Company will be responsible for the equipments;
    • User's manual, instruction video, professional CAD installation drawing, and other needed engineering drawings will be provided;
    • Service principles: Response in time, solve problems as soon as possible and ensure the use;
